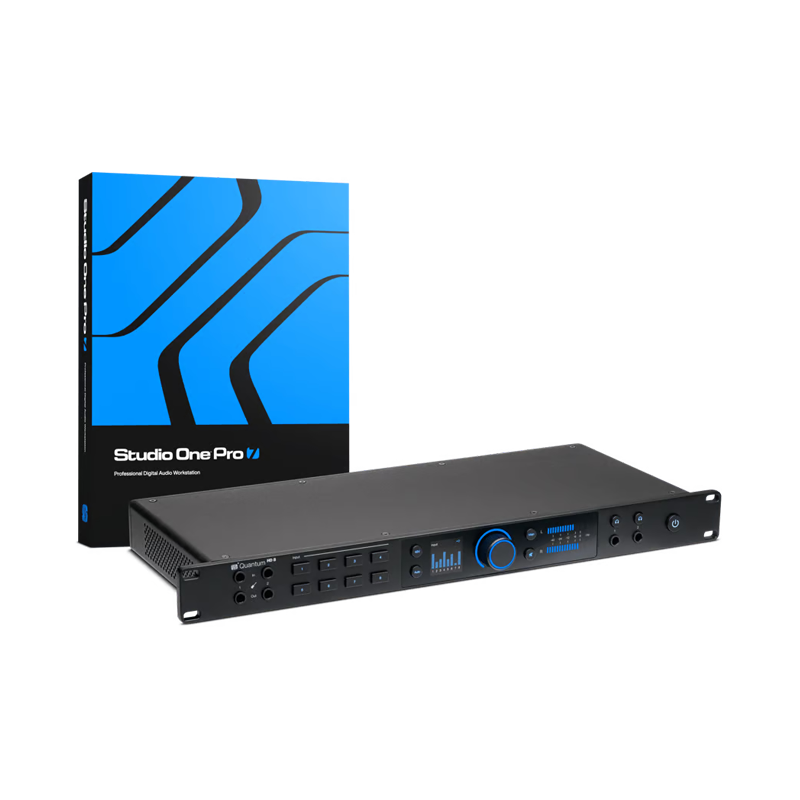

PreSonus / Quantum HD 8 =国内正規品=【★高性能な26インx30アウト、32-bit/192 kHz対応のAD/DAコンバーター搭載のオーディオ・インターフェース!★】【★対象製品にStudio One Pro 7 or Atudio One Artist 6 永続版がバンドル!期間:〜2025年12月31日まで!!★】

PreSonus / Quantum HD 8 =国内正規品=【★高性能な26インx30アウト、32-bit/192 kHz対応のAD/DAコンバーター搭載のオーディオ・インターフェース!★】【★対象製品にStudio One Pro 7 or Atudio One Artist 6 永続版がバンドル!期間:〜2025年12月31日まで!!★】
PreSonus / Quantum HD 8 =国内正規品=【★高性能な26インx30アウト、32-bit/192 kHz対応のAD/DAコンバーター搭載のオーディオ・インターフェース!★】【★対象製品にStudio One Pro 7 or Atudio One Artist 6 永続版がバンドル!期間:〜2025年12月31日まで!!★】

※Studio One Pro v7が付属致します。

¥167,750 (税込)

数量

アクセサリー

Included Accessories

DB-9 breakout cable, 1.5M USB-C to USB-C cable

Electronics

Connectivity

USB-C®

Headphone Jack

Two – 1/4″ TRS Female Stereo

Phantom Power

+48 VDC

VoltageRequirements

100-240 VAC, 50-60 Hz

General

Color

Black

Product Name

Quantum HD 8 USB-C Audio Interface

Series

Quantum

Hardware

ADAT Optical IO

Toslink™ Connectors, ADAT/SMUX Formats

SPDIF IO

RCA 75Ω Coax

Word Clock IO

BNC Connector, 4.5 Vpp @ 75Ω Load

入力

Instrument Inputs Dynamic Range

111 dB (A-Weighted, Minimum Gain)

Instrument Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Instrument Inputs Gain Range

75 dB

Instrument Inputs Maximum Level

+21 dBu (Unbalanced, Minimum Gain)

Line Inputs Dynamic Range

118 dB (A-Weighted, Minimum Gain)

Line Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Line Inputs Gain Range

+/- 10 dB

Line Inputs Impedance

10K Ohms

Line Inputs Maximum Level

+18 dBu (Balanced, Minimum Gain)

Line Inputs Total Harmonic Distortion

0.001% (1 kHz, Minimum Gain)

Microphone Input Connection Type

XLR Female (Combo), Balanced

Microphone Preamp Dynamic Range

116 dB (A-Weighted, Minimum Gain)

Microphone Preamp Equivalent Input Noise

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

Microphone Preamp Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Microphone Preamp Gain Control Range

75 dB

Microphone Preamp Input Impedance

1600 Ohms

Microphone Preamp Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Microphone Preamp Total Harmonic Distortion

0.002% (1 kHz, Minimum Gain)

Measurements

Product Depth

8.6″ (218 mm)

Product Height

1.7” (43.1mm)

Product Height/Length

1.7” (43.1mm)

Product Weight

6.3 lbs. (2.9 kg)

Product Width

19″ (483mm)

その他

Power Cable

IEC

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 (kHz)

アウトプット

Headphone Outputs Dynamic Range

118 dB (A-Weighted)

Headphone Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Headphone Outputs Impedance Working Range

33 Ohms

Headphone Outputs Maximum Output

11 dBu (50 Ohms)

Headphone Outputs Total Harmonic Distortion

0.001% (1 kHz)

Line Outputs Connection Type

1/4″ TRS Female

Main And Line Outputs Dynamic Range

123 dB (A-Weighted)

Main And Line Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

Main And Line Outputs Maximum Level

+18 dBu (Balanced)

Main And Line Outputs Output Impedance

51 Ohms

Main And Line Outputs Total Harmonic Distortion

0.001% (1 kHz, +4 dBu)

Main Outputs Connection Type

1/4″ TRS Female

パフォーマンス

Digital Audio Bit Depth

32-bit

Digital Audio Dynamic Range

124 dB
